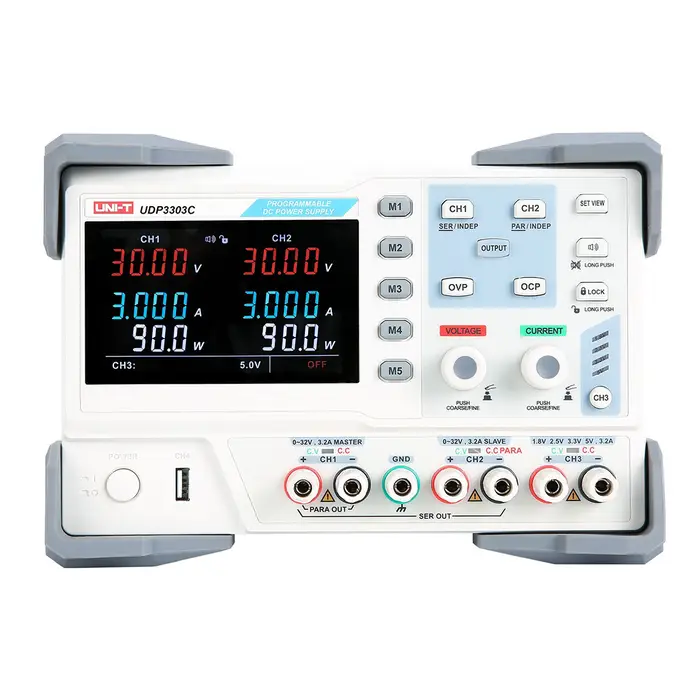

UNI-T UDP3303C Industrial / LAB Linear DC Programmable Power Supply 30V 3A 195W 3 Channel Output High Precision Digital Display
The UNI-T UDP3303C Programmable DC power supply is a cost-effective program control DC power supply with outstanding performance, reliable output and clear interface. The UDP3303C DC power supply has three independent outputs.
Programmable Linear DC Power Supply, 30V/3A
3 independent outputs, 4-digit voltage and current high-precision display
overvoltage and overcurrent protection
Specifications
Output Channels | 3 (2 adjustable: 0–30 V/3 A; 1 fixed: 1.8/2.5/3.3/5 V @ 3 A) |
Total Power | 195 W |
Resolution | 10 mV / 1 mA |
Accuracy | Voltage < 0.5% +20 mV; Current < 0.5% +5 mA |
Noise | ≤ 1 mV_rms; ≤ 3 mA_rms |
Control Modes | CV / CC |
Protections | OVP, OCP, OTP |
Interfaces | USB Host/Device, RS-232, Digital I/O |
Display & Controls | 4-digit LED; M1–M5 presets, buzzer, key lock |
Accessories | Cables + software bundle |
Certifications | CE, cTUVus, UKCA, RoHS |
Warranty | 2 years standard |
Physical | ~240 × 168 × 347 mm; ~8.6 kg |
